Product Description
Toilet paper full embossing roller slitting rewinding machine is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-250M/min.
It has HMI, Chinese-English switch; synchronous frequency conversion drive;integration of mechanics,electrics and photo. It is equipped with whole trouble information. It can detect and adjust every action of the rewinder automatically to keep the rewinder in optimal situation.For example:There is a web tension system in the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.So it is the best choice to produce top-grade bathroom tissue and kitchen towel for paper company.
Technical Parameter:
| SPECIFICATIONS |
| Model | 1400mm,1500mm, 1800mm, 2000mm,2200mm,2800mm, 2900mm, 3000mm |
| Jumbo roll width | 1350mm, 1450mm,1750mm, 1930mm, 2150mm, 2750mm, 2850mm, 2950mm |
| Jumbo roll core size | Φ76mm (other size to be specified) |
| Finished roll diameter | Φ 60-130mm(Tightness is adjustable) |
| Finished roll core diameter | Φ 32-50mm |
| Perforation pitch | Standard size: 110mm(Adjustable) |

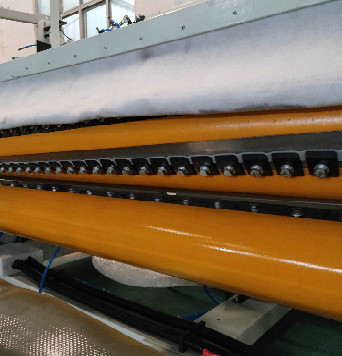

| Perforation | 4PCS sprial upper perforation knives,improve the durability |
| Parameter set | Touch Screen HMI(Siemens) |
| Machine speed | 200-250m/min |
Details:
Full embossing device
This embossing unit can engrave the pattern without color,the diameter of roller is 240mm, and the pattern is engraved by computer, it it very clear and regular.
Jumbo roll stand
Independent wall-type jumbo roll stand, stucture is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.
Glue lamination device
This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394mm.And the pattern is engraved by computer, it it very clear and regular.
Pattern can be any logo, words, flowers,etc
Real machine model:
1 rewinding unit + 1 glue lamination unit + 2 full embosing units + 2 junbo roll stands
